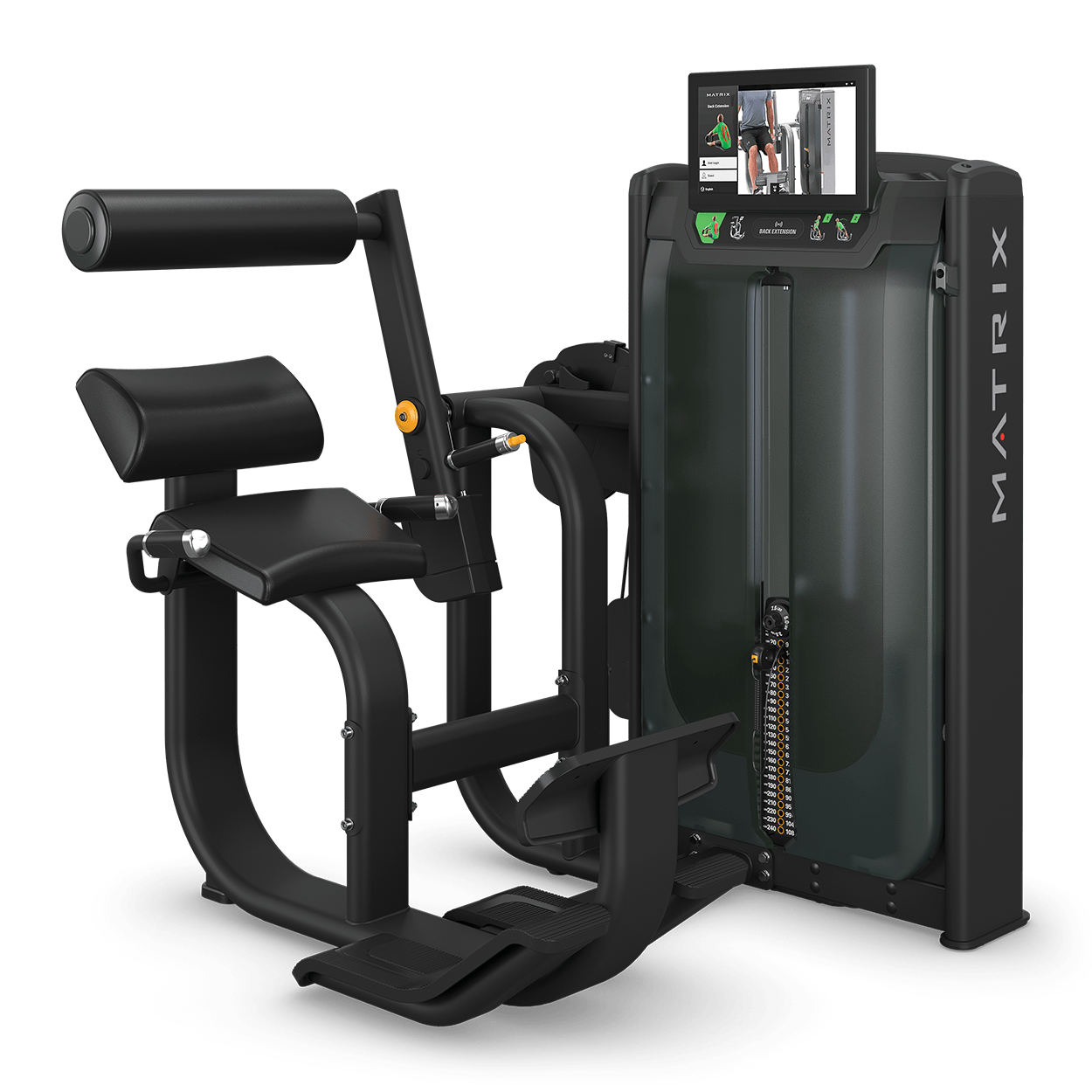

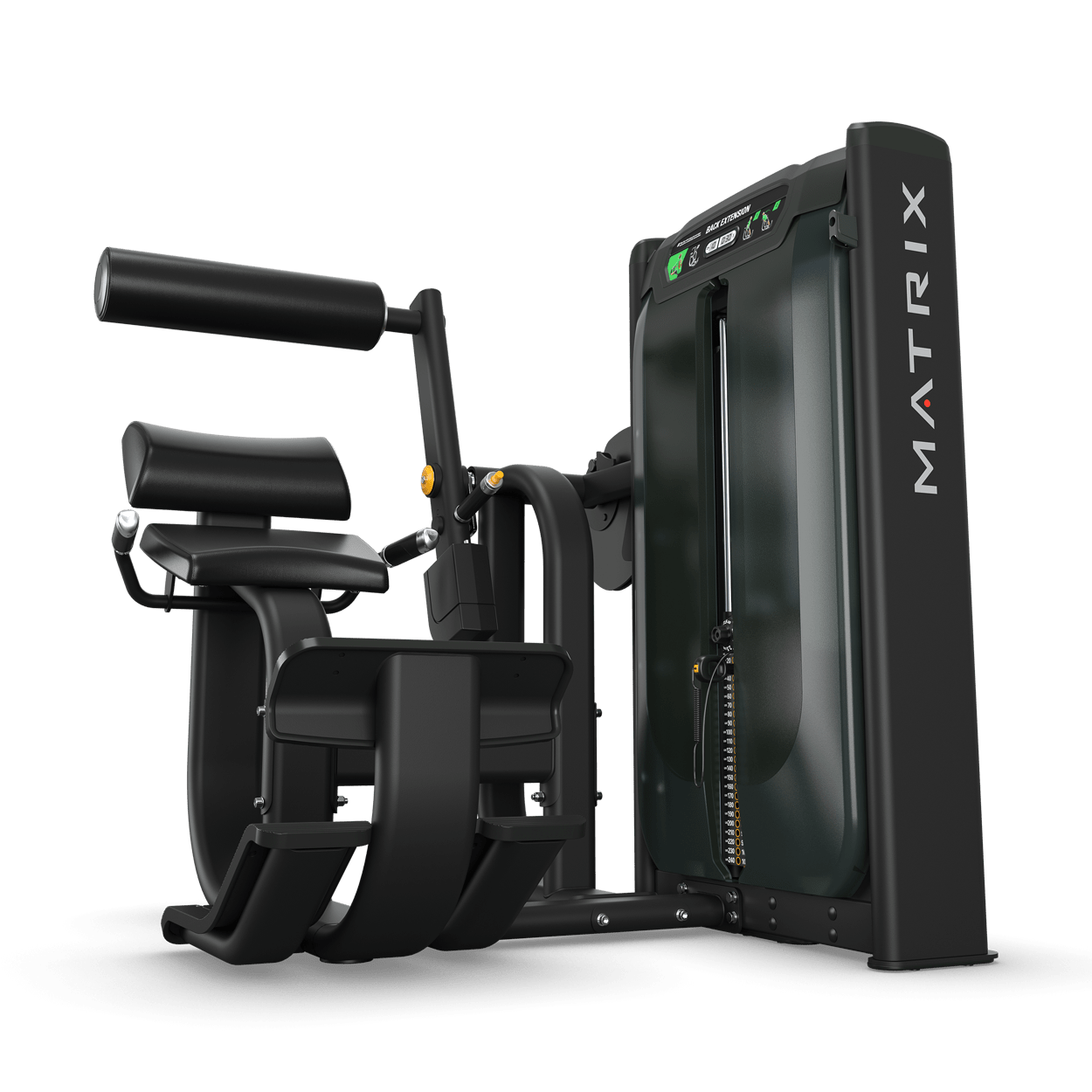

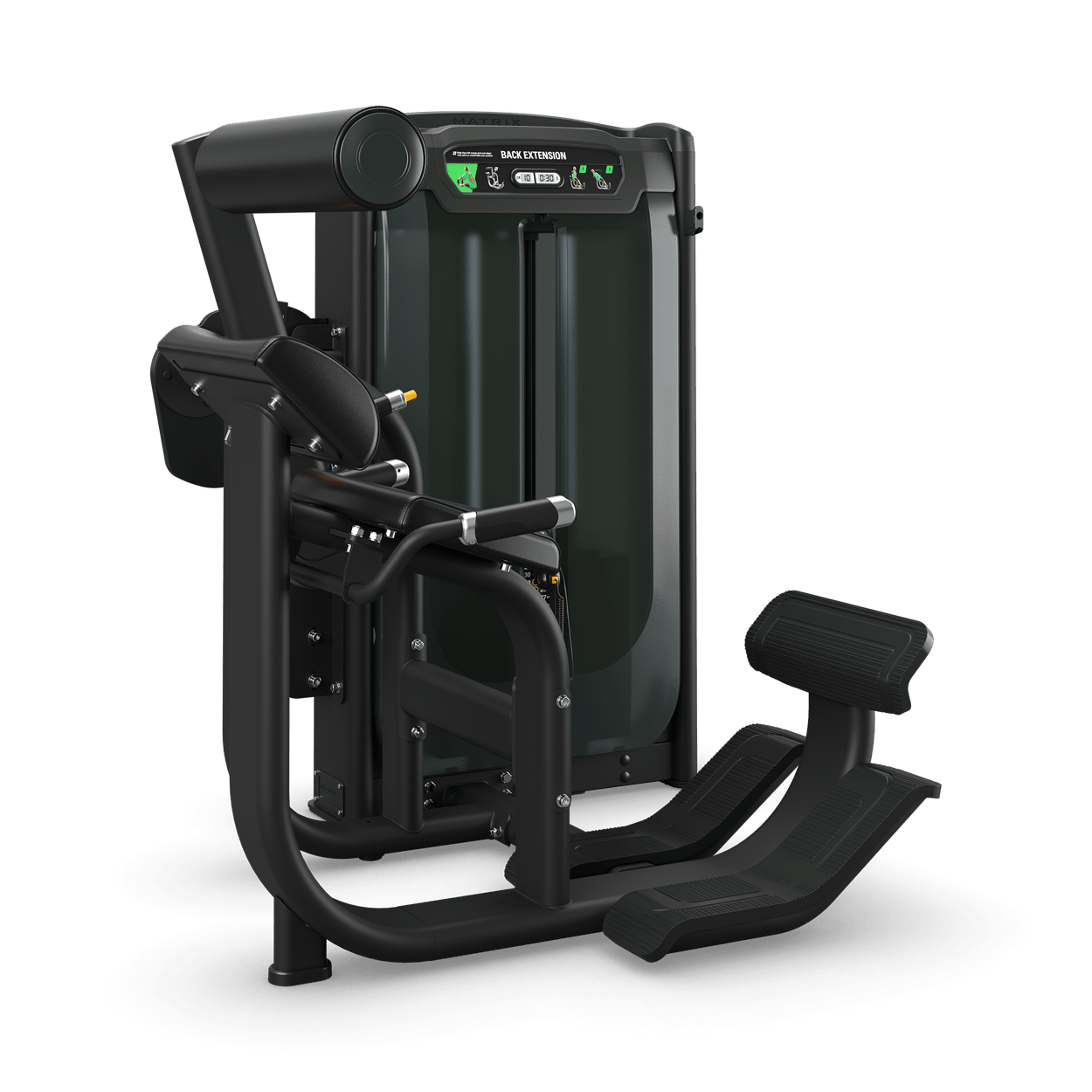

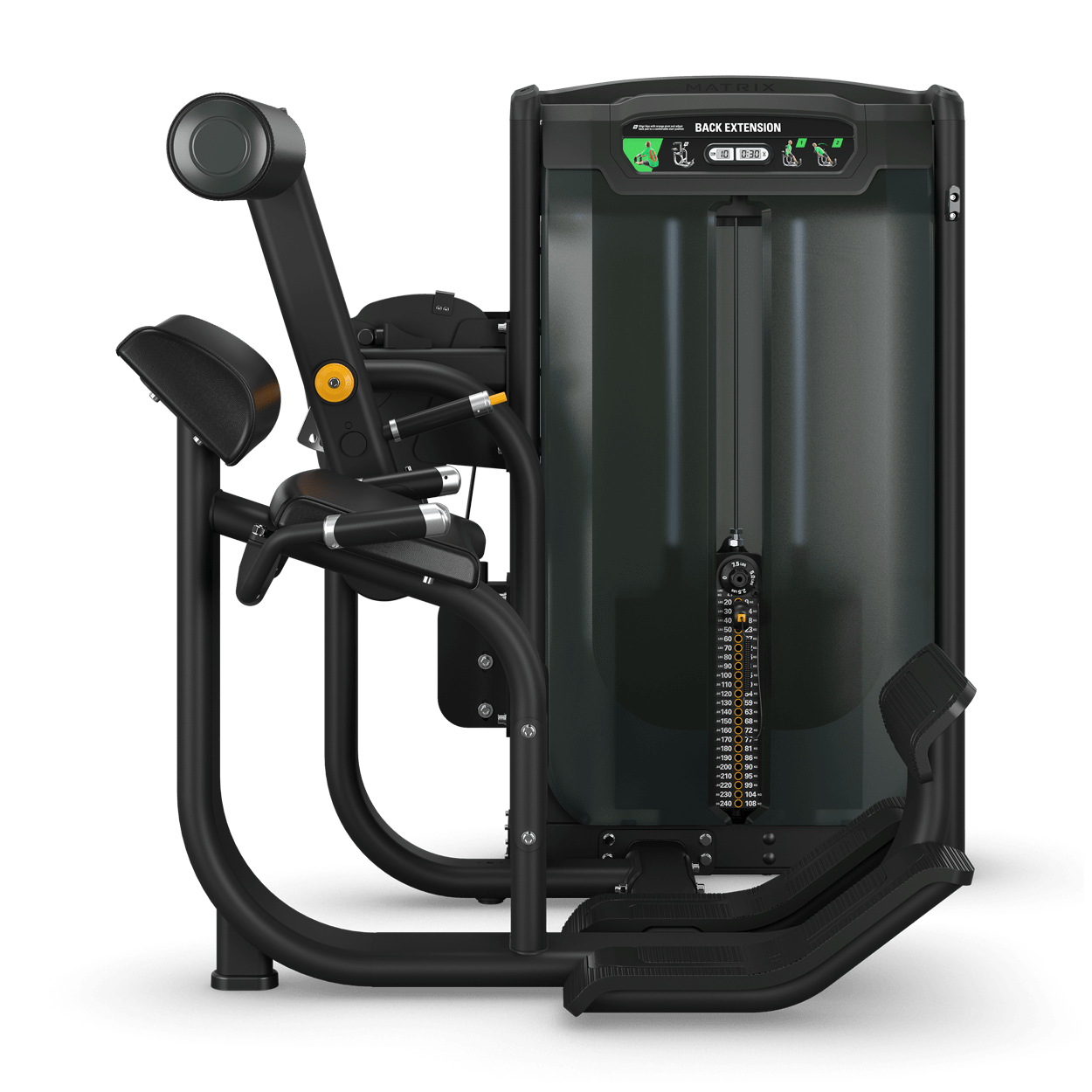

Ultra Back Extension

Designed for comfort and powerful efficiency, the Ultra Back Extension makes it easy to focus on the back’s major muscle groups. Multi-position foot placement accommodates users of all kinds, and thumb-switch controls offer easy adjustments. Additionally, the contoured back pad enhances comfort and provides added support.

Quantity :

Series :Strength

Sku : G7-S52

Adjustments

  • User Adjustment Range: 5 back pad start positions

  • Color Coded Pivots & Adjustment Points: Yes


Frame & Cables

  • Available Frame Colors: Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium

  • Frame Finish: Proprietary two-coat powder process

  • Machine Anchoring: Independent machine hold-down brackets

  • Cable Transmission: Internally lubricated cables & fittings

  • Integrated Leveling System: Yes, top-down leveler


Tech Specs

  • Overall “Static” Dimensions (L × W × H): 127.5 × 120 × 135 cm / 50.1” × 47.3” × 53”

  • Overall “In-Use” Dimensions (L × W × H): 145 × 120 × 135 cm / 57.2” × 47.3” × 53”

  • Product Weight: 316.1 kg / 697 lbs

  • Rep Counter Machine Usage Tracking: Service mode tracks total reps & hours of use

  • Rep Counter Battery Life: ~3 years

  • Rep Counter Power Supply: 2 × AA batteries


User Amenities

  • Front Placards: Muscle callouts, exercise-specific stretching, start & finish illustrations, proper adjustments, color-coded machine ID

  • Rear Placards: Color-coded machine ID, exercise-specific stretching

  • Placard Color Coding: Green (core)

  • Rep Counter: Displays reps, exercise time, and rest time

  • Personal Storage: Two tactile storage mats, personal device cradle, towel hook

  • Contoured Seat: Yes


Weight Stack

  • Total Stack Weight: 108 kg / 240 lbs

  • Weight Plate Increments: 4.5 kg / 10 lbs

  • Incremental Weight System: 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs

  • Max Training Weight: 111.4 kg / 247.5 lbs

  • Consistent 53” Stack Height: Yes

  • Weight Stack Guarding: Full front & rear shields
